Tutorial with 3 drugs

📊 Input for EDITH

To use the EDITH package, you need to provide an input file in .xlsx format. This file should contain the dose-response data for two drugs. You can find an example of such a file in the extdata folder of the package, or found the complete path by running the following code:

list.files(
  path = system.file("extdata", package = "EDITH"),
  pattern = ".xlsx", full.names = TRUE
)

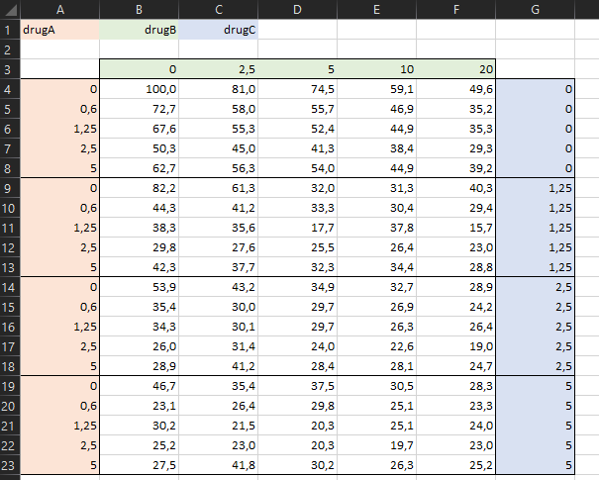

Otherwise, you can have a look at the snapshot of the example input file below:

🔥 The criteria for the input file are as follows:

• The file must be in .xlsx format.
• The first cell (A1) must contain the name of the drug in the rows (e.g., “Drug A”).
• The second cell (B1) must contain the name of the drug in the columns (e.g., “Drug B”).
• The third cell (C1) must contain the name of the drug in the layers (e.g., “Drug C”).
• The second row must be empty.
• The third row must contain the concentrations of Drug B (starting from cell B3).
• The first column must contain the concentrations of Drug A (starting from cell A4).
• The last column must contain the concentrations of Drug C by block.
• The drugs concentrations must be in increasing order (a correction is applied if it is not the case), starting from 0 for no drug (the function give an error if it is not the case), and with a consistent step size (if you want to use the indexes).
• The rest of the cells must contain the corresponding viability values between 0 and 100 (negative values will be set to 0, values higher than 100 will be set to 100, missing values will give an error).

🚨 Important: the values in the input matrix must correspond to the percentage of living cells.

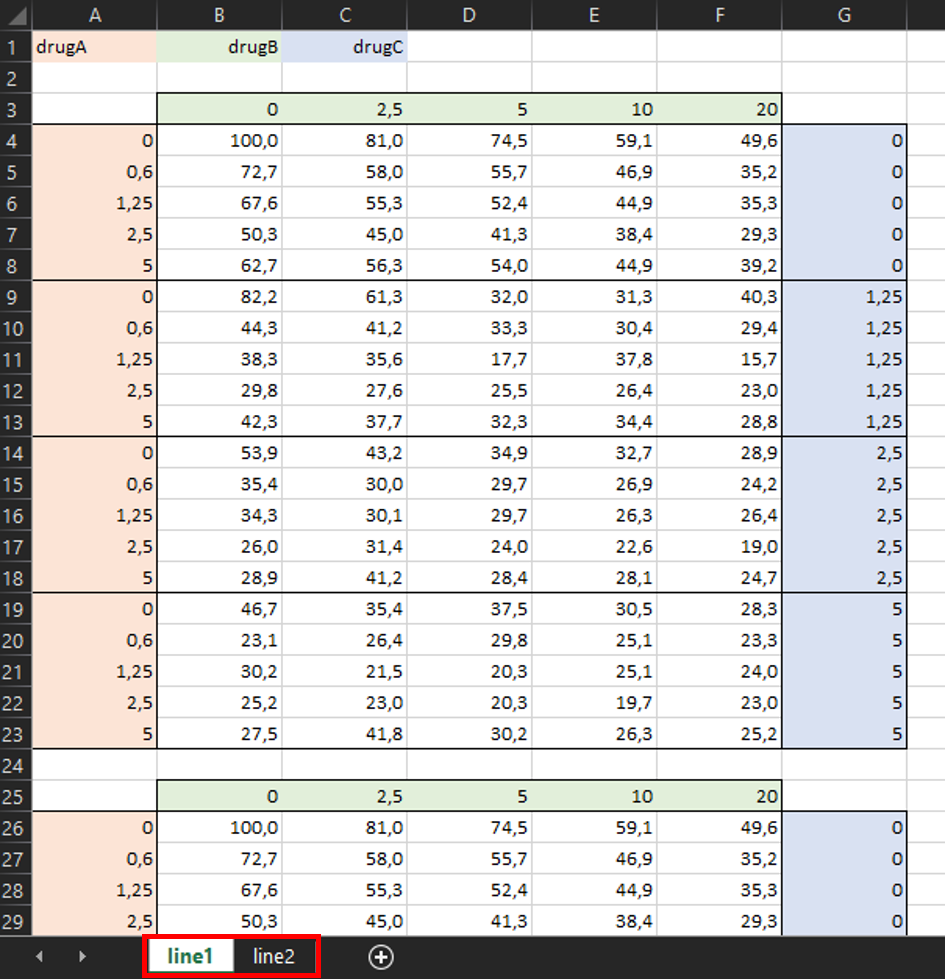

💡 Note: If you have multiple replicates for the same experiment (ie. with exactly the same drugs and doses), you can add them in the same sheet, just below the first experiment, with one empty row in between.

💡 Note: If you have multiple experiments, you can add them in additional sheets of the same file, with the same format. The name of each sheet will be used as the name of the output files.

🚀 Run EDITH

run_EDITH() is a all-in-one function that performs the entire analysis pipeline, from data preprocessing to visualization of results. After loading the EDITH package, you can run the function by copy-pasting the following code into the RStudio console and hitting Enter:

library(EDITH)
run_EDITH()

Then, you can select the input file you want to analyze via a pop-up window:

After selecting the file, the function will automatically process the data, perform the analysis, and generate the output files in the designated output folder.

💡 Note: You don’t need to create the output folder. It will be created automatically when running the functions. It will be create in the same directory as your input file, with the same name as your input file followed by _output/.

🎉 Output

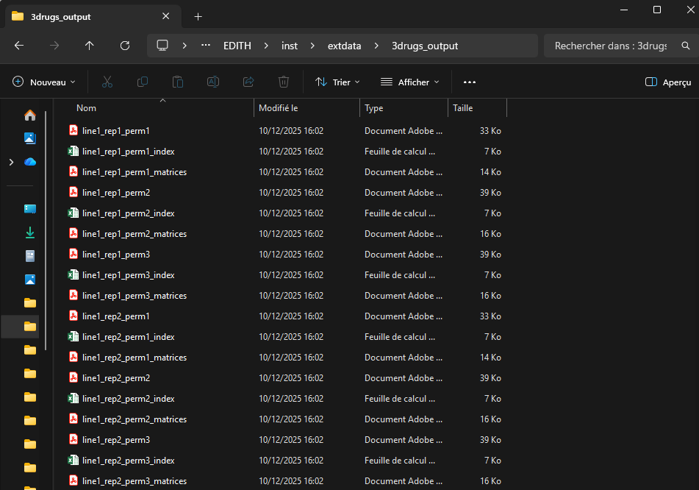

After running the run_EDITH() function, you will find the output files in the output directory created automatically. Here is an example of the output directory structure for a input file with 1 experiment (ie. 1 excel sheet line1), with 2 replicates:

In the three drugs version of EDITH, for each experiment and each replicate, the analysis is performed for all the 3 possible drug permutations:

• Perm 1: drug B in the x-axis, drug A in the y-axis, drug C is varying.
• Perm 2: drug C in the x-axis, drug B in the y-axis, drug A is varying.
• Perm 3: drug A in the x-axis, drug C in the y-axis, drug B is varying.

Finaly, for each experiment, each replicate and each drug permutation, you obtain:

1. One .pdf file with three pages per concentration of the third drug, containing:

• A heatmap visualizing the viability data across different drug concentration combinations,
• A heatmap visualizing the expected viability based on the Bliss independence model,
• A heatmap visualizing the interaction effect for each concentration of the third drug.

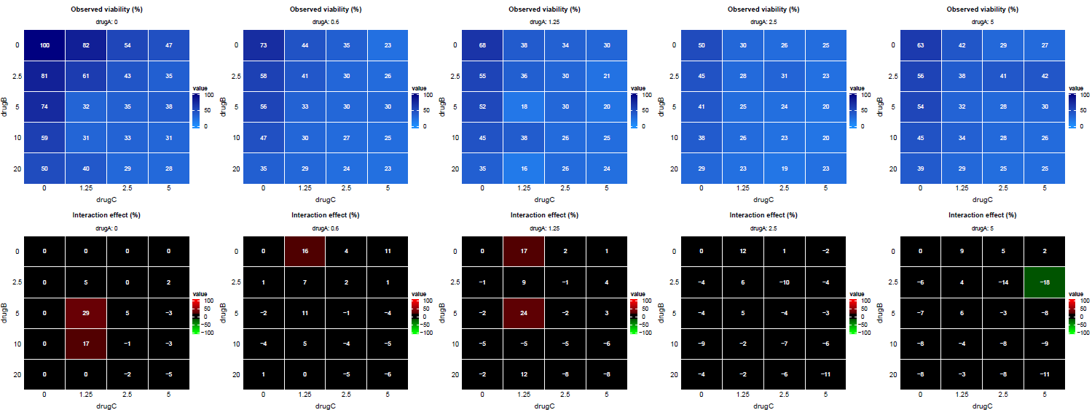

2. One .pdf file with the viability and interaction heatmaps for each concentration of the third drug in an unique file.

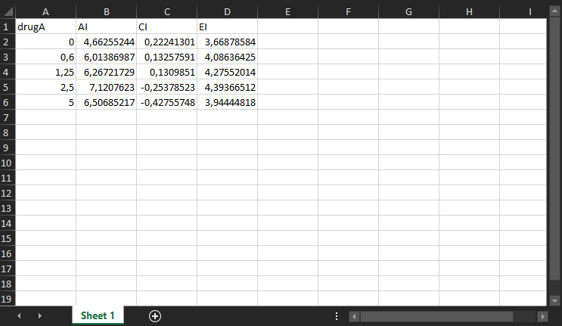

3. One .xlsx file detailing the additive, combination and efficacy indexes for each concentration of the third drug.

🔎 Fore more details about the method, please refer to the theory vignette: https://mathilde-robin.github.io/EDITH/articles/theory.html
